Incremental Link Editor (`ild`)

This manual describes incremental linking, ild-specific features, example messages, and ild options. This document is organized into the following sections:


Introduction	page 1
Overview of Incremental Linking	page 2
How to Use ild	page 2
How ild Works	page 4
What ild Cannot Do	page 5
Reasons for Full Relinks	page 6
Options	page 10
Environment	page 15
Notes	page 16

Introduction

ild is an incremental version of the Link Editor ld, and replaces ld for linking programs. ild allows you to complete the development sequence (the edit, compile, link, and debug loop) efficiently and more quickly than by using a standard linker. You can avoid relinking entirely by using Fix and Continue. Fix and Continue (a part of dbx) allows you to work without relinking, but if you need to relink, the process can be faster if you use ild.

ild links incrementally so you can insert modified object code into an executable file that you created earlier, without relinking unmodified object files. The time required to relink depends upon the amount of code modified. Linking your application on every build does not require the same amount of time; small changes in code can be relinked very quickly.

On the initial link, ild requires about the same amount of time that ld requires, but subsequent ild links can be much faster than an ld link. The cost of the reduced link time is an increase in the size of the executable.

Overview of Incremental Linking

When ild is used in place of ld, the initial link causes the various text, data, bss, exception table sections, etc., to be padded with additional space for future expansion (see Figure 1 on page 3). Additionally, all relocation records and the global symbol table are saved into a new persistent state region in the executable file. On subsequent incremental links, ild uses timestamps to discover which object files have changed and patches the changed object code into a previously built executable. That is, previous versions of the object files are invalidated and the new object files are loaded into the space vacated, or into the pad sections of the executable when needed. All references to symbols in invalidated object files are patched to point to the correct new object files.

ild does not support all ld command options. If ild is passed a command option that it does not support (see "Notes" on page 16), ild directly invokes /usr/ccs/bin/ld to perform the link.

How to Use `ild`

ild is invoked automatically by the compilation system in place of ld under certain conditions. When you invoke a compilation system, you are invoking a compiler driver. When you pass certain options to the driver, the driver uses ild. The compiler driver reads the options from the command line and executes various programs in the correct order and adds files from the list of arguments that are passed.

For example, cc first runs acomp (the front-end of the compiler), then acomp runs the optimizing code generator, then cc does the same thing for the other source files listed on the command line. The driver then generates a call to either ild or ld, depending on the options, passing it all of the files just compiled, plus other files and libraries needed to make the program complete.

Figure 1 shows an example of incremental linking.

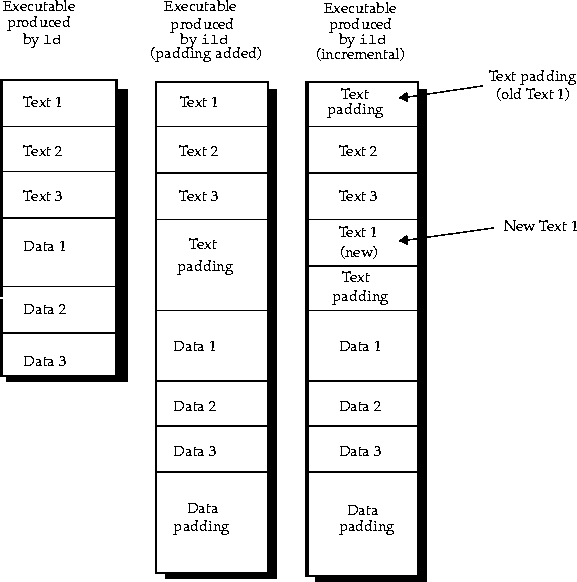

Figure 1 Example of Incremental Linking

The compilation system options that control whether a link step is performed by ild or ld are listed here:

-xildon -- Always use ild
-xildoff -- Always use ld

Note - If -xildon and -xildoff are both present, the last governs.

-g -- When neither -xildoff or -G are given, use ild for link-only invocations (no source files on the command line)
-G -- Prevents the -g option from having any effect on linker selection

Note - Both -g and -G have other meanings which are documented as part of the compilation systems.

When you use the -g option to invoke debugging, and you have the default Makefile structure (which includes compile-time options such as -g on the link command line), you use ild automatically when doing development.

How `ild` Works

On an initial link, ild saves information about:

All of the object files looked at.
The symbol table for the executable produced.
All symbolic references not resolved at compile time.

Initial ild links take about as much time as an ld link.

On incremental links, ild:

Determines which files have changed.
Relinks the modified object files.
Uses stored information to modify changed symbolic references in the rest of the program.

Incremental ild links are much faster than ld links.

In general, you do one initial link and all subsequent links are incremental.

For example, ild saves a list of all places where symbol foo is referenced in your code. If you do an incremental link that changes the value of foo, ild must change the value of all references to foo.

ild spreads out the components of the program and each section of the executable has padding added to it. Padding makes the executable modules larger than when they were linked by ld. As object files increase in size during successive incremental links, the padding can become exhausted. If this occurs, ild displays a message and does a complete full relink of the executable.

For example, as shown in Figure 1 on page 3, each of the three columns shows the sequence of text and data in a linked executable program. The left column shows text and data in an executable linked by ld. The center column shows the addition of text and data padding in an executable linked by ild. Assume that a change is made to the source file for Text 1 that causes the Text section to grow without affecting the size of the other sections. The right column shows that the original location of Text 1 has been replaced by Text padding (Text 1 has been invalidated). Text 1 has been moved to occupy a portion of the Text padding space.

To produce a smaller nonincremental executable, run the compiler driver (for example, cc or CC) with the -xildoff option, and ld is invoked to produce a more compact executable.

The resulting executable from ild can be debugged by dbx because dbx/Debugger understands the padding that ild inserts between programs.

For any command-line option that ild does not understand, ild invokes ld. ild is compatible with ld (in /usr/ccs/bin/ld). See "Options" on page 10, for details.

There are no special or extra files used by ild.

What `ild` Cannot Do

When ild is invoked to create shared objects, ild invokes ld to do the link.

Performance of ild may suffer greatly if you change a high percentage of object files. ild automatically does an full relink when it detects that a high percentage of files have been changed.

Do not use ild to produce the final production code for shipment. ild makes the file larger because parts of the program have been spread out due to padding. Because of the padding and additional time required to link, it is recommended that you do not use the -xildon option for production code. (Use -xildoff on the link line if -g is present.)

ild may not link small programs much faster, and the increase in size of the executable is greater than that for larger programs.

Third-party tools that work on executables may have unexpected results on ild-produced binaries.

Any program that modifies an executable, for example strip or mcs, might affect the ability of ild to perform an incremental link. When this happens, ild issues a message and performs a full relink. See "Reasons for Full Relinks, "Example 2: running strip" on page 8.

Reasons for Full Relinks


	`$` `cat test1.c`
	`int main() { return 0; }`
	`$` `rm a.out`
# This creates test1.o	`$` `cc -xildon -c -g test1.c`
# This creates a.out with minimal debugging information.	`$` `cc -xildon` `-z` `i_verbose` `-g test1.o`
# A one-line compile and link puts all debugging information into a.out.	$ cc -xildon -z i_verbose -g test1.c
	ild: (Performing full relink) internal free space in output file exhausted (sections)
	$

These commands show that going from a one-line compile to a two-line compile causes debugging information to grow in the executable. This growth causes ild to run out of space and do an full relink.

Example 2: running `strip`

Another problem arises when you run strip. Continuing from Example 1:


# Strip a.out	`$` `strip a.out`
# Try to do an incremental link	`$` `cc` `-xildon` `-z` `i_verbose` `-g test1.c`
	ild: (Performing full relink) a.out has been altered since the last incremental link -- maybe you ran strip or mcs on it?
	$

Example 3: `ild` version

When a new version of ild is run on an executable created by an older version of ild, you see the following error message:

# Assume old_executablewas created by an earlier version of ild	`$` `cc` `-xildon` `-z` `i_verbose` `foo.o` `-o` `old_executable`
	ild: (Performing full relink) an updated ild has been installed since a.out was last linked (2/16)

# Assume   old_executablewas
created by an earlier
version of ild

$ cc -xildon -z i_verbose foo.o -o old_executable

ild: (Performing full relink) an updated ild
has been installed since a.out was last linked
(2/16)

Note - The numbers (2/16) are used only for internal reporting.

Example 4: too many files changed

Sometimes ild determines that it will be faster to do a full relink than an incremental link. For example:


`$` `rm a.out`
`$` `cc -xildon -z i_verbose` \
`x0.o x1.o x2.o x3.o x4.o x5.o x6.o x7.o x8.o test2.`o
`$` `touch x0.o x1.o x2.o x3.o x4.o x5.o x6.o x7.o x8.o`
`$` `cc -xildon -z i_verbose` \
`x0.o x1.o x2.o x3.o x4.o x5.o x6.o x7.o x8.o test2.`o
`ild: (Performing full relink) too many files changed`

Here, use of the touch command causes ild to determine that files x0.o through x8.o have changed and that a full relink will be faster than incrementally relinking all nine object files.

Example 5: full relink

There are certain conditions that can cause a full relink on the next link, as compared to the previous examples that cause a full relink on this link.

The next time you try to link that program, you see the message:

# ild detects previous error and does a full relink

$ cc -xildon -z i_verbose broken.o

ild: (Performing full relink) cannot do incremental relink due to problems in the previous link

# ild detects previous error and does a full relink	`$` `cc -xildon` `-z` `i_verbose` `broken.o`
`ild: (Performing full relink) cannot do incremental relink due to problems in the previous link`

A full relink occurs.

Example 6: new working directory


	`%cd /tmp`
	`%cat y.c`
	`int main(){ return 0;}`
	`%cc -c y.c`
	`%rm -f a.out`
# initial link with cwd equal to /tmp	`%` `cc` `-xildon` `-z` `i_verbose` `y.o` `-o` `a.out`
	`%mkdir junk`
	`%mv y.o y.c a.out junk`
	`%cd junk`
# incremental link, cwd is now /tmp/junk	`%` `cc` `-xildon` `-z` `i_verbose` `y.o` `-o` `a.out`
	ild: (Performing full relink) current directory has changed from `/tmp' to `/tmp/junk'
	%

Options

Linker control options directly accepted by the compilation system and linker options that may be passed through the compilation system to ild are described in this section.

Options Accepted by the Compilation System

These are linker control options accepted by the compilation system:

-i

Ignores LD_LIBRARY_PATH setting. When an LD_LIBRARY_PATH setting is in effect, this option is useful to influence the runtime library search, which interferes with the link editing being performed.

-s

Strips symbolic information from the output file. Any debugging information and associated relocation entries are removed. Except for relocatable files or shared objects, the symbol table and string table sections are also removed from the output object file.

-V

Output a message about the version of ild being used.

-B dynamic | static

Options governing library inclusion. Option -Bdynamic is valid in dynamic mode only. These options can be specified any number of times on the command line as toggles: if the -Bstatic option is given, no shared objects are accepted until -Bdynamic is seen. See option "-l x (space is optional)" on page 11.

-g

The compilation systems invoke ild in place of ld when the -g option (output debugging information) is given, unless any of the following are true: The -G option (produce a shared library) is given The -xildoff option is present Any source files are named on the command line

-d y | n

When -dy (the default) is specified, ild uses dynamic linking; when -dn is specified, ild uses static linking. See option "-B dynamic | static" on page 11.

-L path (space is optional)

Adds path to the library search directories. ild searches for libraries first in any directories specified by the -L options, and then in the standard directories. This option is useful only if it precedes the -l options to which it applies on the command line. The environment variable LD_LIBRARY_PATH can be used to supplement the library search path (see "LD_LIBRARY_PATH" on page 15).

-l x (space is optional)

Searches a library libx .so or libx .a, the conventional names for shared object and archive libraries, respectively. In dynamic mode, unless the -Bstatic option is in effect, ild searches each directory specified in the library search path for a file libx .so or libx .a. The directory search stops at the first directory containing either ild chooses the file ending in .so if -l expands to two files whose names are of the form libx .so and libx .a. If no libx .so is found, then ild accepts libx .a. In static mode, or when the -Bstatic option is in effect, ild selects only the file ending in .a. A library is searched when its name is encountered, so the placement of -l is significant.

-o outfile

Produces an output object file named outfile. The name of the default object file is a.out.

-Q y | n

Under -Qy, an ident string is added to the .comment section of the output file to identify the version of the link editor used to create the file. This results in multiple ld idents when there have been multiple linking steps, such as when using ld -r. This is identical with the default action of the cc command. Option -Qn suppresses version identification.

-R path (space is optional)

This option gives a colon-separated list of directories that specifies library search directories to the runtime linker. If present and not null, path is recorded in the output object file and passed to the runtime linker. Multiple instances of this option are concatenated and separated by a colon.

-xildoff

Incremental linker off. Force the use of bundled ld. This is the default if -g is not being used, or -G is being used. You can override this default with -xildon.

-xildon

Incremental linker. Force the use of ild in incremental mode. This is the default if -g is being used. You can override this default with -xildoff.

-Y P,dirlist (space is optional)

(cc only) Changes the default directories used for finding libraries. Option dirlist is a colon-separated path list.

Note - The "-z name" form is used by ild for special options. The i_ prefix to the -z options identifies those options peculiar to ild.

-z defs

Forces a fatal error if any undefined symbols remain at the end of the link. This is the default when building an executable. It is also useful when building a shared object to assure that the object is self-contained, that is, that all its symbolic references are resolved internally.

-z i_dryrun

(ild only.) Prints the list of files that would be linked by ild and exits.

-z i_full

(ild only.) Does a complete relink in incremental mode.

-z i_noincr

(ild only.) Runs ild in nonincremental mode (not recommended for customer use -- used for testing only).

-z i_quiet

(ild only) Turns off all ild relink messages.

-z i_verbose

(ild only) Expands on default information on some ild relink messages.

-z nodefs

Allows undefined symbols. This is the default when building a shared object. When used with executables, the behavior of references to such "undefined symbols" is unspecified.

-z weakextract

A weak reference to a symbol will cause a file defining that sysmbol to be extracted from a static library.

Options Passed to `ild` from the Compilation System

The following options are accepted by ild, but you must use the form:

-Wl,arg,arg (for cc), or -Qoption ld arg,arg (for others),

to pass them to ild via the compilation system

-a

In static mode only, produces an executable object file; gives errors for undefined references. This is the default behavior for static mode. Option -a cannot be used with the -r option.

-m

Produces a memory map or listing of the input/output sections on the standard output.

-t

Turn off the warning about symbols that are defined more than once and that are not the same size.

-e epsym

Sets the entry point address for the output file to be that of the symbol epsym.

-I name

When building an executable, uses name as the path name of the interpreter to be written into the program header. The default in static mode is no interpreter; in dynamic mode, the default is the name of the runtime linker, /usr/lib/ld.so.1. Either case can be overridden by -I name. The exec system call loads this interpreter when it loads the a.out and passes control to the interpreter rather than to the a.out directly.

-u symname

Enters symname as an undefined symbol in the symbol table. This is useful for loading entirely from an archive library because, initially, the symbol table is empty and an unresolved reference is needed to force the loading of the first routine. The placement of this option on the command line is significant; it must be placed before the library that defines the symbol.

Environment

LD_LIBRARY_PATH

A list of directories in which to search for libraries specified with the -l option. Multiple directories are separated by a colon. In the most general case, it contains two directory lists separated by a semicolon: dirlist1; dirlist2 If ild is called with any number of occurrences of -L, as in: ild ...-Lpath1 ... -Lpathn ... then the search path ordering is: dirlist1 path1 ... pathn dirlist2 LIBPATH When the list of directories does not contain a semicolon, it is interpreted as dirlist2. LD_LIBRARY_PATH is also used to specify library search directories to the runtime linker. That is, if LD_LIBRARY_PATH exists in the environment, the runtime linker searches the directories named in it, before its default directory, for shared objects to be linked with the program at execution.

Note - When running a set-user-ID or set-group-ID program, the runtime linker searches only for libraries in /usr/lib. It also searches for any full pathname specified within the executable. A full pathname is the result of a runpath being specified when the executable was constructed. Any library dependencies specified as relative pathnames are silently ignored.

LD_OPTIONS

A default set of options to ild. LD_OPTIONS is interpreted by ild as though its value had been placed on the command line immediately following the name used to invoke ild, as in: ild $LD_OPTIONS ... other-arguments ...

LD_PRELOAD

A list of shared objects that are to be interpreted by the runtime linker. The specified shared objects are linked in after the program being executed and before any other shared objects that the program references.

Note - When running a set-user-ID or set-group-ID program, this option is silently ignored.

LD_RUN_PATH

An alternative mechanism for specifying a runpath to the link editor (see -R option). If both LD_RUN_PATH and the -R option are specified, the -R is used.

LD_DEBUG

(not supported by ild) Provide a list of tokens that cause the runtime linker to print debugging information to the standard error. The special token help indicates the full list of tokens available.

Note - Environment variable names beginning with the characters `LD_ `are reserved for possible future enhancements to ld. Environment variable-names beginning with the characters `ILD_ ` are reserved for possible future enhancements to ild.
