Generating Code |
7 |
 |
In this chapter, you will:
The "Generate" option displays the Generate dialog.
C is used for the examples in this chapter. The procedure for generating C++ is exactly the same and you may use C++ for the tutorial if you prefer. The procedure for UIL is very similar to the procedure for C with the exception of one additional step which is discussed in the Setting the Language section on page 222.
Note - In Microsoft Windows mode the Generate Menu has an additional selection to generate Microsoft Windows resource files. This is discussed in the Building the Application section on page 11-378 of the Cross Platform Tutorial chapter.
7.3 Generate Dialog
To display the Generate dialog, pull down the Generate menu and select "Generate".

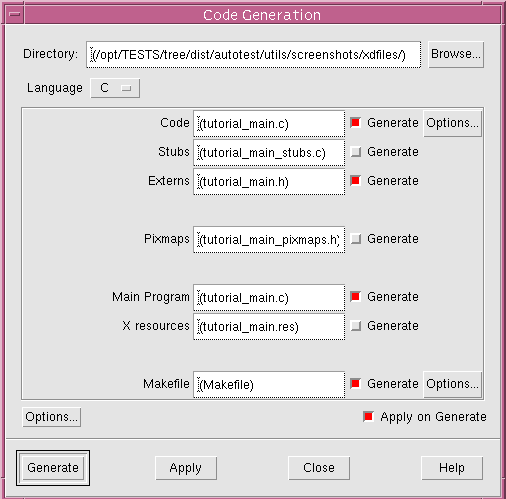

Figure 7-1 Generate dialog
7.3.1 Setting up the Dialog
Before setting up individual files to be generated, you need to set two options which affect all the files:
| Make sure that "C" is selected from the "Language" option menu. |
When you select "UIL" from the Language option menu, enter the name of the UIL file in the "UIL" field and the name of the supplementary C file in the "Code" field. You must also specify a name for the compiled UIL file. This is done by pressing the Code "Options" button and then entering the name in the "Uid file" field.
"Includes" (see the Setting up the Primary Source File section on page 223), "Main program", and "Links" (see the Code Generation Options section on page 232) can be generated into the C file but not into the UIL.
UIL is a Motif-specific language and does not work with widgets outside the Motif toolkit. If your design contains a widget from another toolkit, you must use C or C++.
7.3.3 Setting the Base Directory
To set the base directory you can type it directly into the text box labelled "Directory" or you can press the "Browse" button. The "Browse" button displays a file selection box so that you can find and select a directory. The filenames of the files to be generated are relative to the base directory. By default, the base directory is the directory from which you last opened a saved design or, if you are working on a new design, the directory from which you invoked WorkShop Visual. The default, which is shown enclosed in brackets, is not saved into your ".xd" file. An explicitly named directory will be saved. 7.3.4 Setting up the Primary Source File
In the text box labelled "Code", enter the filename of your primary source file. A description and explanation of this file is given in the Analysis of the Primary Module section on page 244.
Note - If you generate a separate code and main program file, you must include the generated externs file so that both files can use the same variables.
#include "NameOfFile.h"
By default, the header file is contained within quotation marks (`"` and `"') but you may use angle brackets (`<' and `>') if you prefer. For example, to change the line shown above you would type <NameOfFile.h> in the "Include Header File" text box. The following line would then be generated:#include <NameOfFile.h>
If you wish to include both an external header file (not created by WorkShop Visual) and an Externs file created by WorkShop Visual in your code file, you can enter the name of the external header file in the "Include Header File" field and then make sure that this header file includes the Externs file generated by WorkShop Visual. 7.3.5 Setting up the Stubs File
Callback stubs, i.e. "empty" routines with the specified callback or method name, are generated for all callbacks and callback methods in your design. These are generated into a separate source file called a Stubs File. If you have callbacks or methods in your design, generating a stubs file allows you to compile the application since the callbacks are referenced from the main source code. It is left to you, however, to add the required functionality to the callback routines. You are shown how to do this in the Adding Callback Functionality section on page 239.
Along with the callback stubs, WorkShop Visual generates special comments. These comments are explained in the Stubs File Comments section on page 243.
Your design has just one callback: quit(). For now, generate a stubs file with an empty quit() function. The dummy function lets you compile, link and run your application as a prototype. Later (in the Adding Callback Functionality section on page 239), you will add functionality to quit() to complete your application.
To set up an Externs file, type the name of the file in the text box labelled "Externs" and set the "Generate" toggle next to it. By convention, Externs files have the suffix .h.
|
| Make sure that the "Generate" toggle next to the text box labelled "Externs" is not set because you do not need an externs file for the tutorial. |
The Externs file is also useful for including in your stubs file or other code files where you access global widgets or refer to type definitions. See the Global Widget Variables section on page 196 for more details.
There are no separate options for the Externs file.
7.3.7 Setting up the Pixmaps File
The Pixmaps file is similar to the Externs file. It is a header file with static declarations of all the pixmaps in your design. Generating one of these files lets you keep the cumbersome definitions of pixmap structures separate from your primary source file.
|
| Make sure that the "Generate" toggle next to the text box labelled "Pixmaps" is not set because you do not need a pixmaps file for the tutorial. |
If you wish the main() procedure to be generated into the primary source file, make sure that the text box labelled "Main program" contains the same name as the "Code" text box and the corresponding "Generate" toggle is set.
You can control which resources are generated and into which file by setting the options described in the Code Generation Options section on page 232.
Making X Find Your Resource File
X does not automatically recognize icecream.res as your application's resource file. One recommended method of telling X where to find this file is to copy the resource file to the designated application resource directory (/usr/lib/X11/app-defaults on POSIX systems). The filename in that directory should be the application class name, XDTutorial, without a suffix (see the Code Generation Options section on page 232 for details on how to set the application class name). This method avoids any confusion of this application-specific resource file with other files you might be using.
setenv XENVIRONMENT icecream.res
XENVIRONMENT=icecream.res; export XENVIRONMENT
7.3.10 Setting up the Makefile
WorkShop Visual can generate a makefile containing compilation instructions for all the files required by your design with the correct dependencies. For the tutorial, your makefile needs to compile both icecream.c and stubs.c. It also needs to link the resulting object files with the required libraries.
For more details on makefile generation and customization in general see Chapter 15, "Makefile Generation", starting on page 525. For information on makefile configuration see the Makefile Template section on page 623. For details on how to change the makefile template application resource, see the Generation section on page 726 in Appendix , "Application Defaults".
Makefile Generation Options
Pressing the button labelled "Options" beside the makefile text box produces the dialog shown in Figure 7-3.
Figure 7-3 Makefile Options Dialog
|
| For the tutorial, set the "New Makefile" toggle but do not set the "Makefile Template" toggle. |

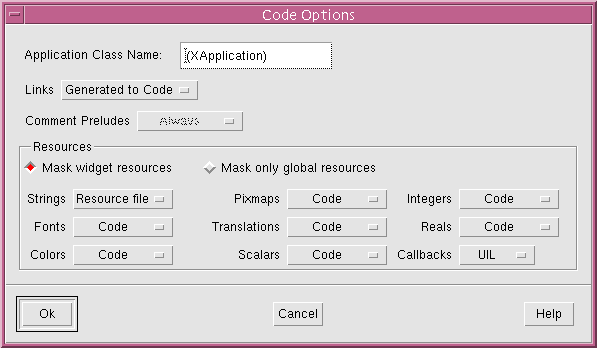

Figure 7-4 Generate Options Dialog
Application Class Name
The application class name is used to identify resource settings when you generate an X resource file. Assigning a name other than the default "XApplication" prevents confusion of your resource values with system-wide X resources. Links Code Generation
Using the option menu labelled "Links", you can choose whether the links are generated into the primary source file, into the stubs file or not generated at all. Alternatively, you could choose to generate the links code declarations only. Comment Preludes
This option menu refers to the special comments which appear in the generated code around the areas where preludes can be added. Adding preludes is described in the Customizing the Generated Files: Preludes section on page 254. You can choose whether you wish comments to be added "Always" (whether a prelude has been specified or not), "When Defined" (i.e. only when a prelude has been specified) or "Never". The default is "Never".
The example below shows a comment for a shell pre-manage prelude. Because there is no prelude inside the comment we must assume that "Always" was the selected option:
/* visu: prelude for shell1: pre-manage >>> */
/* <<< pre-manage ends. */
XtSetArg(al[ac], XmNallowShellResize, TRUE); ac++;
shell1 = XmCreateDialogShell ( parent, "shell1", al, ac );
ac = 0;
/* visu: prelude for form1: pre-create >>> */
/* <<< pre-create ends. */
XtSetArg(al[ac], XmNautoUnmanage, FALSE); ac++;
form1 = XmCreateForm ( shell1, "form1", al, ac );
Control of Resources
The panel in the middle of the Options dialog contains references to each type of resource.
The option menu labelled "Callbacks" differs from the others. This is only used for UIL and lets you choose whether callbacks are registered in the UIL code or the C code. By default, they are registered in the UIL. If you use client data, however, you should generate the callbacks into the C code, because structure types cannot be defined in UIL. See the Setting the Language section on page 222 for an explanation of the C for UIL file.
For the tutorial, make the following changes in the Generate Options Dialog:

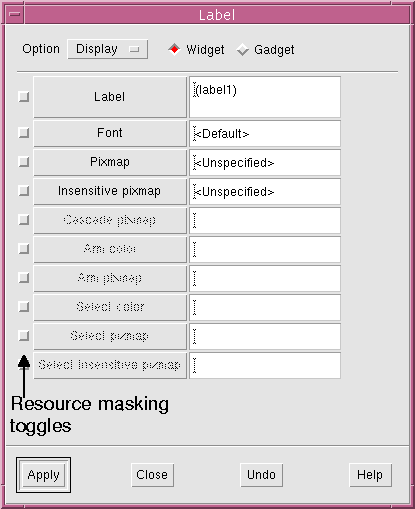

Figure 7-6 Resource Panel Masking Toggles
Mask Widget Resources
The following description applies when the "Mask widget resources" toggle is set: Mask Only Global Resources
The following description applies when the "Mask only global resources" is set:
All other resources are controlled only by their individual resource panel toggles. They are generated into the code file if the resource panel toggle is off and into the resource file if the resource panel toggle is on.
Examples of Masking Effects
In many cases, designers want to generate most strings into an X resource file so that they can be edited easily. This makes it possible to produce a foreign-language version of the application simply by editing the X resource file. To do this, you generate strings into the X resource file. However, there may be a few strings, such as the company's address, which you do not want users to be able to change. You can hard-wire these few string resources by setting their individual masking toggles. Default Settings
Default resource values, shown in brackets on the resource panels, are never generated into either file. In this case, Motif calculates the resource value at run time. The result may be different from the default value you saw while building the interface, depending on the platform you run the program on. Using default values is often helpful in making your application portable. 7.3.13 Finishing the Generate dialog
When you have finished setting up the files you wish to generate and their options in the Generate dialog, you can press "Apply" to save the settings or "Generate" to generate the files straight away. If you select "Apply" you can invoke the Generate dialog when you are ready and then generate all the selected files, or you can select the relevant button on the toolbar (or in the Generate menu) to generate individual files using the settings you applied earlier without producing the generate dialog again. If you have set the "Apply on Generate" toggle, pressing "Generate" performs a "Apply" as well as generating the requested files. 7.3.14 Running the tutorial
Having set up the Generate dialog with the files you wish to generate and their associated options, you are now ready to generate code and run your prototype application.
Although your prototype also calls quit() when you click on exit_button, quit() doesn't do anything because you have not yet supplied the code to make it functional. This will be added in the Adding Callback Functionality below. To terminate your prototype when you have finished examining it:
Setting up Callback and Prelude Editing section on page 615 WorkShop Visual uses the SunSoft Workshop Edit Server when you press the "Edit code" button. The stubs file is opened in a separate editing window with the insertion point inside the function brackets of the selected callback. As you select other callbacks the insertion point moves around the file so that you are always at the correct place. If you try to regenerate the stubs file when there are unsaved changes in the Edit Server window, you will be prompted to save those changes first.
Before allowing you to edit the stubs file, WorkShop Visual checks to see whether there have been any changes to the design since the last stubs file generation. If so, you are asked whether you wish to regenerate the file before editing. You cannot edit the file if you do not regenerate it.
7.4.2 Editing the Callback
If you do not wish to use WorkShop Visual to edit your callback:
|
| Open stubs.c with a text editor and skip ahead to Step 5. |
void
quit (Widget w, XtPointer client_data, XtPointer xt_call_data )
{
XmPushButtonCallbackStruct *call_data = (XmPushButtonCallbackStruct *) xt_call_data;
}
The Callback Functions section on page 194 looks at callbacks in more detail, including the parameters passed to them and the ways in which you can access and manipulate widgets in your design.
The tutorial is now complete. The remainder of this section looks in more detail at the issues discussed in previous sections.
7.4.4 Incremental Stubs File Generation
When you subsequently generate the same stubs file, WorkShop Visual reads the special comments in that file in order to work out which callbacks and methods have already been generated. In this way you can add your own code to the stub and it will not be overwritten.
Below is the listing of a stubs file containing one callback, named quit:
Note - When you remove a callback from a widget in WorkShop Visual, the callback stub will remain in the stubs file. If you want to remove the routine, you will need to open the stubs file and remove the comment above the callback routine.
/*
** Generated by WorkShop Visual
*/
The Beginning of the Prelude:/*
** WorkShop Visual generated prelude.
** Do not edit lines before "End of WorkShop Visual generated
prelude"
** Lines beginning ** WorkShop Visual Stub indicate a stub
** which will not be output on re-generation
*/
/*
**LIBS: -lXm -lXt -lX11
*/
The End of the Prelude:/* End of WorkShop Visual generated prelude */
Special Comment to Indicate a Stub:/*
** WorkShop Visual Stub quit
*/
void
quit (Widget w, XtPointer client_data, XtPointer xt_call_data )
{
XmPushButtonCallbackStruct *call_data =
(XmPushButtonCallbackStruct *) xt_call_data;
}
7.4.5 Stubs File Comments
At the beginning of the file there is a prelude which WorkShop Visual reads and, effectively, throws away. The prelude is always regenerated anew. Before every stub WorkShop Visual generates a comment giving the name of the callback or method. In this way WorkShop Visual can calculate which stubs it still needs to generate, having read the existing stubs file.
Note - You should not alter these comments in any way unless you wish WorkShop Visual to regenerate the stub.
7.4.6 Regeneration of Callback Stubs
If you wish WorkShop Visual to regenerate one of the stubs, simply remove the comment preceding the stub and the stub itself. If you remove only one or the other, one of the following will occur:
WorkShop Visual will not remove old stubs even though a special comment no longer matches a callback or callback method.
|
| Open icecream.c with the text editor and inspect it as you read. |
7.5.1 The Header Section
The primary module has the following header material, in this order:
After some standard WorkShop Visual comments, there is a list of #include statements needed for the code in your module. The #include statements are optional and are controlled by the toggles in the Code Options dialog - see the Setting up the Primary Source File section on page 223.
WorkShop Visual also needs to include its own header file in order to define the base classes that it uses. If you wish to change the name of the file to be included, or not include a base class header file at all, refer to the Generation section on page 726 for details of the application resource that you will need to change.
7.5.2 Link Functions or Link Declarations
Next, the module contains code for the link functions. The following code fragment shows a typical link function:void XDunmanage_link ( Widget w, XtPointer client_data, XtPointer
call_data )
Generation of this code is optional and is controlled by the Generate Options dialog - see the Code Generation Options section on page 232.
7.5.3 Variable Declarations
In this section, all globally defined widgets in the design are declared. The following lines are typical:Widget exit_button = (Widget) NULL;
Widget help_cascade = (Widget) NULL;
Only global widgets are declared here. By default, widgets are local in scope. Local widgets are defined in the function which creates their parent Shell and cannot be referenced elsewhere in your application. To make a widget global, you can:
7.5.4 Variable Names
Variable names must be unique. If you "Read" or "Paste" widgets into your design whose variable names duplicate names of existing widgets, WorkShop Visual silently removes the duplicate names and assigns new, local, names of the form widget_type<n>, e.g. shell4, form5, etc. 7.5.5 Creation Procedures
By default, WorkShop Visual generates a creation procedure for each Shell widget in your design. The creation procedures are the heart of the generated code. Each creation procedure does the following:
By default, creation procedures have the form create_<shell name>, based on the variable name of the Shell. Your design has two Shells: a Dialog Shell, named help_window, and an Application Shell, named myFirstShell. It therefore has two creation procedures: create_myFirstShell and create_help_window. You can change the name of a creation procedure in a code prelude, discussed later in this chapter.
create_help_window has the following form:
void create_help_window (Widget parent)
{
. . .
}The function body has function calls which create the Dialog Shell itself:
help_window = XmCreateDialogShell ( parent, "help_window", al, ac );Dialog Shells, unlike Application Shells, are dependent on another Shell, parent. See the Shell Types section on page 75 for more details concerning the various Shell types and their respective behavior.
create_help_window also creates all the Shell's children. The DialogTemplate child, to which you gave an explicit variable name, is created and assigned to a global variable:
dialog_2 = XmCreateMessageBox ( help_window, "dialog_2", al, ac);
The Label, if you did not name it explicitly, is assigned to a local variable as illustrated below. (Note that the widget variable name may be different in your code.)label1 = XmCreateLabel ( dialog_2, "label1",al,ac);
create_myFirstShell, the creation procedure for your Application Shell, has different arguments because it is a different type of Shell:void create_shell_1 (Display *display, char *app_name, int
app_argc, char **app_argv)
{
. . .
}
See the Shell Pre-create Prelude section on page 259 for a discussion of these arguments.
This function is similar to create_help_window, although it is considerably longer as your main window has more child widgets than the help window.
7.5.6 Callback Procedures
The primary module does not include callback functions themselves. However, it does add any callbacks you have specified to each widget's callback list. create_myFirstShell contains the following lines (not necessarily together) which create the exit_button and add the quit callback.exit_button = XmCreatePushButton ( rowcol1, "exit_button", al,
ac );
. . .
XtAddCallback (exit_button, XmNactivateCallback, quit, NULL);
An extern declaration of quit() is generated earlier in the source file.help_button = XmCreatePushButton ( rowcol2, "help_button", al,
ac );
. . .
XtAddCallback (help_button,XmNactivateCallback, XDmanage_link,
(XtPointer) &xd_links[0] );
7.5.7 Description of the Main Program
A minimal main() procedure is either generated into a separate file or at the end of your primary module. See the Setting up the Main Program File section on page 227 for details on generating this procedure into a separate file.
WorkShop Visual's main() procedure does the following things:
|
| Close the file icecream.c. |
<application name>*<widget name>.<resource>: <value>
For identification purposes, the widget's variable name (not the widget name) precedes the list of its resources in a comment. If a group of widgets share a widget name, however, only one variable name from the group appears. A comment is also generated for any widget which has no resources generated into the file.
|
| Open your X resource file (icecream.res) with a text editor and look at it. |
! button1
XDTutorial*button1.labelString: Cone
! button2
XDTutorial*button2.labelString: Dish
! button3
XDTutorial*button3.labelString: Cancel
! procedure_cascade
XDTutorial*procedure_cascade.labelString: Procedures
! button4
XDTutorial*button4.labelString: Wash Dishes...
! button5
XDTutorial*button5.labelString: Count Money
! exit_button
XDTutorial*exit_button.labelString: Exit
XDTutorial*exit_button.accelerator: Ctrl<Key>E
XDTutorial*exit_button.acceleratorText: Control + E
! help_cascade
XDTutorial*help_cascade.labelString: Help
XDTutorial*help_cascade.mnemonic: H
! help_button
XDTutorial*help_button.labelString: About This Layout
XDTutorial*help_button.mnemonic: AAn end user can change any of these strings by editing its value in the X resource file. For example, the second line could be changed to read:
XDTutorial*procedure_cascade.labelString: Closing UpResource values in the X resource file are overridden by values for the same resource in the .Xdefaults file in the user's home directory.
The example given in the Tight Bindings section on page 98 would produce the following line:
Note - This section only discusses the syntax of the generated resource file, refer to the Tight Bindings section on page 98 for a thorough explanation of tight bindings.
XDTutorial*FirstForm*OkButton.labelString: Ok
7.6.3 Loose Bindings
If you have set any loose bindings, these will appear at the top of the generated resource file. Their syntax is slightly different as they never refer to individual widgets.
The example given in the Loose Bindings section on page 90 would generate the following line in the resource file:
Note - This section only describes the syntax of resource files - for a thorough explanation of loose bindings, refer to the Loose Bindings section on page 90.
XDTutorial*XmDialogShell*MyForm.MyButton.labelString: Bound
7.6.4 Shared Resource Values
To identify a widget completely, X requires a list of all the widget's ancestors in the hierarchy as well as the widget's own name. In the generated X resource file, WorkShop Visual uses a wildcard (*) instead of a list of specific ancestors. Thus, each widget is distinguished only by the application name and the widget name, and any widgets which share a widget name, also share any resources generated into the X resource file./* dialog buttons */
visu*apply_button.labelString: Apply
visu*cancel_button.labelString: Close
WorkShop Visual has several buttons, in several places, which have the widget name apply_button. All these buttons share the label string "Apply". Similarly, all buttons with the widget name cancel_button share the label string "Close". These strings can be changed on all buttons at once by editing one line of the X resource file.
7.7 Arranging Your Files
WorkShop Visual allows considerable flexibility in arranging files to suit your preference. This flexibility requires some care on your part, since you must include all necessary pieces of code, yet avoid duplication, in order for your application to link successfully. 7.7.1 Using Separate Directories
It is a good practice to keep a separate directory for each WorkShop Visual application. Make the directory before you start designing. Save your design file and generate all code files and resource files into that directory. 7.7.2 Keeping Generated Files Unchanged
To avoid errors, do all of your own coding outside the primary module and X resource file generated by WorkShop Visual. Code preludes, module preludes (see the Customizing the Generated Files: Preludes section on page 254) and the various options in the Generate dialog give you some control over the primary module from within WorkShop Visual. Similarly, resource preludes let you adjust the X resource file. If you do not edit these files outside WorkShop Visual, you can regenerate them when you make changes in your design without sacrificing any work you have done.
7.7.3 Keeping Main Separate
The main() procedure almost always needs to be edited. For this reason it is best to generate a separate main program file. You can then edit this file as you wish. Make sure that you do not regenerate the main program file once you have made your own changes to it. See the Setting up the Main Program File section on page 227 for details on how to do generate a separate main program file.
7.7.4 Stubs File
Unlike other generated files, the stubs file is meant to be edited. WorkShop Visual will preserve changes to stubs files on re-generation. See Chapter 6, "Making It All Work" for details on adding, editing and understanding callbacks. See the Adding Callback Functionality section on page 239 for details on editing a stubs file.
7.7.5 Where To Put Links
If your application uses links, you must generate the link functions and function declarations into either the code file or the stubs file. 7.7.6 Where to Put Includes
If your make procedure involves compiling the primary module and the application code separately, you should turn on the "Include Header File" toggle for the primary source code file. This procedure was followed in the tutorial. See the Setting up the Primary Source File section on page 223 for details on how to do this.
Another strategy involves writing a #include directive to include the generated code in your application code file and compile all the code together. If you do this, you should turn on "Include Header File" only once for the primary module and turn it off when you generate the stubs file.
7.8 Customizing the Generated Files: Preludes
WorkShop Visual lets you edit the primary source file, which it generates, in order to add lines of your own code, here called preludes. All preludes can be entered by typing them into WorkShop Visual and allowing WorkShop Visual to insert them into the code at the appropriate place. There are several types of prelude, distinguished by where the code is inserted.
7.9 Module Preludes
The "Module prelude..." command in the "Module" menu lets you enter a heading prelude, a module prelude and a resource prelude in your code, using the dialog shown in Figure 7-8.

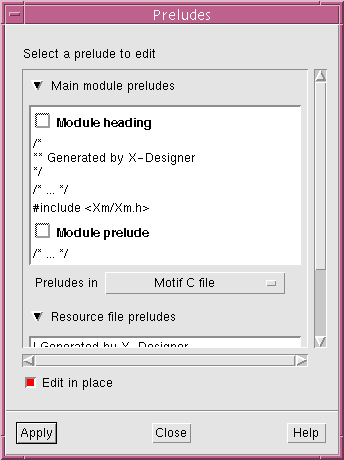

Figure 7-8 Module Prelude Dialog
If the "Edit in place" toggle is not set, a large text widget appears on the right of the dialog. Enter your code here. You should type the code exactly as if you were using a text editor to type any other code. This means that you should observe all the rules and conventions of the target language, including end of line markers, bracketing conventions etc. You should always press Return after the last line in a prelude.
7.9.1 Heading Prelude
The heading prelude is inserted at the beginning of the main program file, the code file, the externs file and the stubs file. Typically, a module heading would contain a comment with information such as the program name, SCCS ID, or version number. 7.9.2 Module Prelude
The module prelude is inserted at the top of the generated code file - just after WorkShop Visual's generated #include statements, if you asked for them. The module prelude can be used to supply #define or #include statements or extern declarations which are needed by your code. The module prelude is generated only into the primary module, not the stubs file. 7.9.3 Resource Prelude
The resource prelude is inserted at the beginning of the X resource file to specify application resources - i.e. resources which refer to the whole application and not to individual widgets. Use the following syntax:ApplicationName*resource: value
For example:visu*symbolFont: -*-symbol-medium-r-normal--14*
Although these resource bindings apply to all widgets in the application, they are overridden by more specific resource settings on individual widgets or groups of widgets with a common name.
7.10 Code Preludes
While module preludes apply to the whole module, code preludes apply to individual widgets. This means that the code will be inserted before the widget is created or managed. To add prelude code:

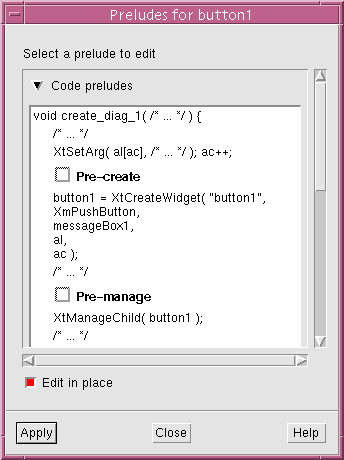

Figure 7-9 Code Preludes Dialog
7.10.1 Code Preludes Dialog
The Code Prelude dialog contains text representing generated code for the selected widget. This code is representative only, so that you can see where the preludes will be added. This is not the actual generated code.
There are three kinds of method preludes for use with C++: public, private and protected. These relate to their access. The Method Access Control section on page 275 provides more information on method access. You can, however, add both methods and data members in a prelude. The Adding Class Members as a Prelude section on page 307 shows, as part of a tutorial, how to add data members using the Code Prelude dialog.
Clicking over "Code preludes" or "Method preludes" folds away the corresponding text area so that only the other prelude type is visible.
7.10.2 Adding a Code Prelude
Selecting one of the toggles which appear in the representative text, allows you to edit that type of prelude. There are two ways of adding a code prelude:
If the "Edit in place" toggle is not set, a large text widget appears on the right of the dialog. Enter your code here. You should type the pre-creation code exactly as if you were using a text editor to type any other code. This means that you should observe all the rules and conventions of the target language, including end of line markers, bracketing conventions etc.
7.10.3 Pre-create Preludes
Pre-create preludes are inserted into the code before the selected widget is created.
...
/* visu: prelude for rowcol1: pre-create >>> */
Enter pre-create code here
/* <<< pre-create ends. */
rowcol1 = XmCreateRowColumn ( shell11, "rowcol1", al, ac );
...
If you had selected "Edit in place" and you are editing the generated code directly, make sure that your code is typed into the area surrounded by special comments. It is then preserved when you regenerate code. You must not alter or remove the special comments. 7.10.4 Shell Pre-create Prelude
The code preludes for a Shell differ slightly from those of other widgets. The pre-creation prelude is used to replace the function header for the Shell's creation procedure. You can then, if you wish, define extra parameters. Required for Application Shell widgets:
Display *display;
char *app_name;
int app_argc;
char **app_argv;
Required for Dialog Shell or Top level Shell widgets:
Widget parent;
In C for UIL the following are also required:
MrmHierarchy hierarchy_id;
MrmCode *class;
If you do not provide a pre-create prelude for a Shell widget, the creation procedure name defaults to create_<widget-variable-name> with the compulsory parameters as the only parameters.
Note - If you provide a pre-create prelude for a Shell, the call of the creation procedure in the generated default main() program is unlikely to be correct.
Warning - Shell pre-create preludes cannot be edited in place for Motif XP or MFC code. In general, code preludes should not be used for cross-platform designs because, by their very nature, preludes tend to include platform-specific code.
7.10.5 Pre-manage Preludes
The pre-manage prelude appears slightly later than the pre-create prelude in the generated code - just before the widget's callbacks are added. One use of this prelude is to set up client data for the callbacks. Other uses include setting the value of a Text widget, filling a ScrollingList, adding buttons from a file, or any other dynamic initializations. Below is a segment of generated code showing where pre-manage preludes appear: ...
/* visu: prelude for shell1: pre-manage >>> */
Enter pre-manage code here
/* <<< pre-manage ends. */
XtSetArg(al[ac], XmNallowShellResize, TRUE); ac++;
XtSetArg(al[ac], XmNargc, app_argc); ac++;
XtSetArg(al[ac], XmNargv, app_argv); ac++;
...
If you had selected "Edit in place" and you are editing the generated code directly, make sure that your code is typed into the area surrounded by special comments. It is then preserved when you regenerate code. You must not alter or remove the special comments. 7.10.6 Shell Pre-manage Prelude
A Shell's pre-manage prelude is inserted just after the local declarations in the procedure. Otherwise it is the same as for other widgets.
7.11 Using the Edit Mechanism
Setting up Callback and Prelude Editing section on page 615WorkShop Visual uses the SunSoft Workshop Edit Server when you edit the generated code file. The file is opened in a separate editing window at the appropriate place in the file for the selected prelude type. As you select other prelude types the insertion point moves around the file so that you are always at the correct place. If you try to regenerate the code file when there are unsaved changes in the Edit Server window, you will be prompted to save the changes first.
7.11.1 Prelude Acceptance Chooser

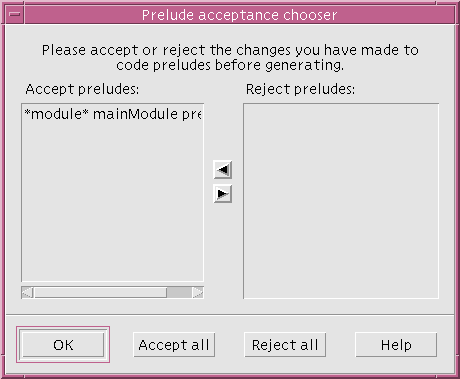

When you regenerate the code file after having added a prelude in place, the Prelude Acceptance Chooser is displayed. This is shown in Figure 7-10. Adding a prelude directly into the Preludes dialog will not cause the Prelude Acceptance Chooser to appear.
Figure 7-10 Prelude Acceptance Chooser
Note - If you unset the "Edit in place" toggle and you have added a prelude since the last code file generation the Prelude Acceptance Chooser is displayed because any new preludes need to be shown in the Preludes dialog.
